Product Description
Our company specialize in design, production, and installation of various functional mixing and dispersing equipment, and can customize according to customer requirements or drawings.
Function and Adv.
High production efficiency, hydraulic or pneumatic lifting, flexible frame rotation
During mixing and dispersion, there is minimal air absorption, which can quickly dissolve the material and reduce particle size
Good mixing and blending effects

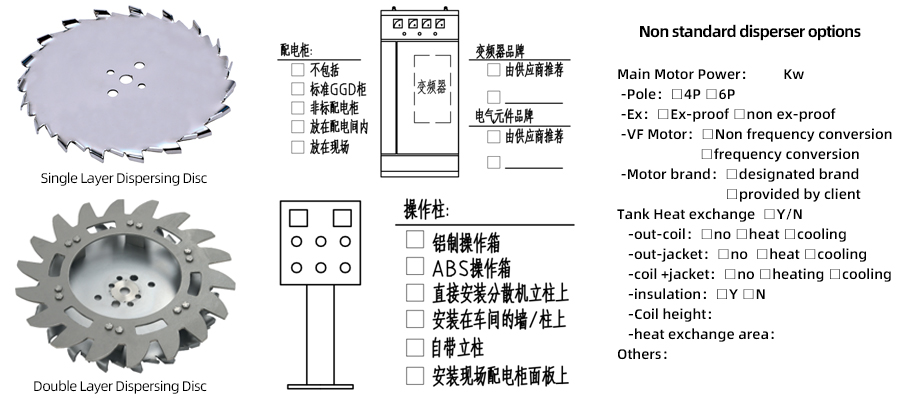

Customizable features:
Stainless steel shaft/chrome plated shaft
Strap type clamp/hand cranked clamp
Environmentally friendly lid
Frequency Converter
Electric Cabinet and Control panel
Ex-proof
Single shaft /double shaft
Stationed

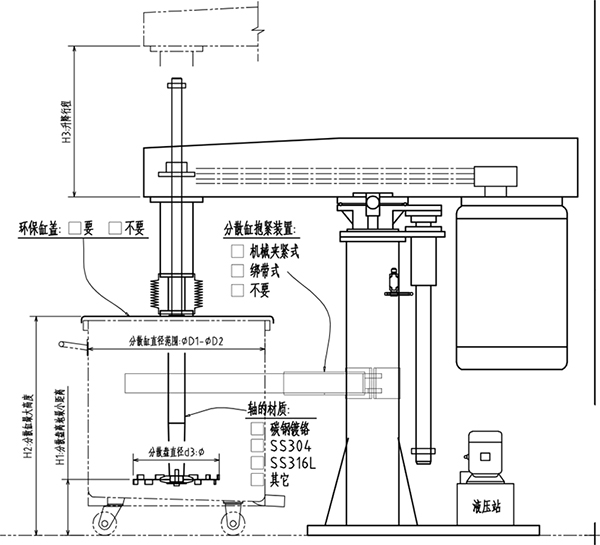

Regular Power Parameter
| item | Power | Disc diameter d3 | Tank Min HeightH1 | Tank Max HeightH2 | H3 |
|---|
| 1 | 4Kw | Φ180 | 220 | 950 | 800 |
| 2 | 7.5Kw | Φ250 | 250 | 1150 | 1000 |
| 3 | 11Kw | Φ280 | 250 | 1150 | 1000 |
| 4 | 15Kw | Φ300 | 250 | 1150 | 1000 |
| 5 | 18.5Kw | Φ300 | 250 | 1350 | 1200 |
| 6 | 22Kw | Φ330 | 250 | 1350 | 1200 |
| 7 | 30Kw | Φ350 | 250 | 1350 | 1200 |
| 8 | 37Kw | Φ380 | 250 | 1350 | 1200 |
| 9 | 45Kw | Φ380 | 250 | 1350 | 1200 |
One machine to multi-tank
